What Are Solar Panel Electrical Connectors? Explore Types, Importance, and Uses

Solar panel electrical connectors, also known as solar wire connectors, are small yet crucial components of a solar system that connect solar panels to one another and to other system components, such as solar inverters and lithium batteries. Their main job is to carry the electricity safely while keeping out water, dust, and sunlight damage.

Because solar systems are mostly located outdoors, these connectors have to be tough, waterproof, and weather-resistant.

Over the years, various types of solar cables and connectors have been replaced by one another. Nowadays, almost every rooftop solar panel system for homes, housing societies, and commercial buildings uses the MC4 solar panel connectors. These were first manufactured by a company called Multi-Contact AG, which is now known as Staubli.

MC4 connectors are safer and more reliable than older connector types, such as MC3 and T4. They boast a locking system that stops them from loosening, strong sealing against dust and rain (IP67/IP68 ratings), and can handle high DC currents without overheating. All this reduces the chances of accidents or power loss.

In this blog, we will guide you through the various types of solar panel wire connectors and the reasons that led to MC4 solar panel connectors becoming the standard connector in all types of solar systems, including on-grid solar systems, off-grid solar systems, and hybrid solar systems. We will also explain the importance of solar cables and connectors, outline the features that good-quality connectors should have, and provide some tips on selecting the right MC4 solar connector cable for your solar energy system.

TL;DR Summary Box: What Kind of Solar Panel Electrical Connectors Do Solar Panels Have?

Almost all residential and commercial rooftop systems nowadays use the MC4 solar panel connectors. These connectors have become the industry standard because they are safe, reliable, and built to withstand outdoor conditions.

MC4 solar panel connectors are touch-safe. This ensures you don’t accidentally get shocked. They also have a positive locking mechanism that keeps them tightly connected even when the system is running at full load. On top of that, they are waterproof, UV-resistant, and strong enough to withstand high currents and voltages.

Here are the main topics covered in this blog in detail:

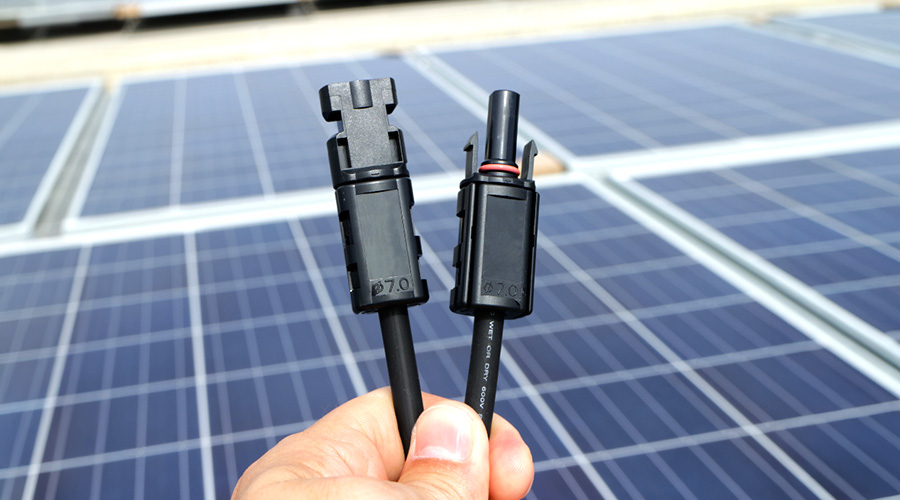

What Are Solar Panel Electrical Connectors?

Solar panel electrical connectors are the devices responsible for creating a weatherproof electrical connection between solar PV panels, solar inverters, and other components of a solar energy system. They safely carry the DC power produced by the panels while keeping out moisture and dust. Since they are always exposed to the sun, they are also made of UV-resistant materials, so they don’t crack or break over time.

Since a solar system can last more than 25 years, these connectors also need to be tough enough to survive heat, cold, rain, snow, and strong winds for decades without failing.

The most commonly used solar connector today is the MC4 connector, which features improved locking mechanisms, better sealing properties, and enhanced safety features.

Here are some key improvements in MC4 design that have made these connectors so widely used:

• Touch-proof design: It prevents accidental contact with live conductors.
• Positive locking mechanism: An audible click confirms proper connection.
• Higher current ratings: These connectors can support continuous currents of 30 to 50 amperes.

What Are the Key Features of Solar Wire Connectors?

Unlike standard electrical connectors, solar connectors are built to handle high DC voltage and current in outdoor conditions. These critical features distinguish quality solar wire connectors from generic alternatives.

Let’s check out all the key features that make solar cables and connectors safe for real-world use:

• Weather resistance (IP67/IP68 rating): These connectors are sealed to keep out dust, heavy rain, and even short-term water immersion. That means they continue to work safely during storms and harsh weather conditions.
• Touch-safe design: These solar panel electrical connectors completely enclose live electrical parts within insulated casings, preventing accidental contact during installation or maintenance. This eliminates the risk of getting shocked and meets electrical code requirements for exposed DC connections.
• Positive locking mechanism: There’s an audible click sound when good connectors are properly closed. They don’t open on their own. This avoids loose connections that can cause sparks, power loss, or even fire hazards.
• UV-resistant materials: The outer body is made from special materials that resist damage from sunlight. If connectors aren’t UV-resistant, their plastic layer can become brittle and crack within 5-10 years. Those cracks can allow water inside and cause the system to fail.
• High current capacity: Solar energy systems have become more efficient nowadays, and that’s why solar panel electrical connectors should be able to carry a current of 30 amps or more safely. If the connectors are too small, they can overheat, waste energy, and even pose a fire risk.
• Temperature stability: Good solar connectors must work reliably in extreme heat and cold. Since solar systems are exposed to extreme temperature changes outdoors, poor-quality solar wire connectors can crack, leak, or fail within just a few years.
• Corrosion resistance: The metal parts of high-quality solar wire connectors are mostly made of tin-plated copper. It protects them from rust and corrosion.
• Cable strain relief: Good solar panel electrical connectors should not strain or be pulled when exposed to strong winds or when the wires expand and contract with temperature changes. This keeps the connection secure for longer and avoids loose wires that can cause dangerous sparks.

What Are the Different Types of Solar Wire Connectors?

The five main types of solar wire connectors are MC4 connectors, MC3 connectors, T4 connectors, H4 (Amphenol) connectors, and Anderson Powerpole connectors. The Anderson Powerpole connectors, specifically, are not truly designed for solar panels. Instead, they find use in portable solar systems where frequent disconnection is required.

Before you check out these solar cables and connectors in detail, here’s a quick snapshot of how they compare with each other:

Now, let’s check out all five solar cables and connectors in detail.

#1. MC4 Solar Panel Connectors

MC4 solar panel connectors are single-contact connectors designed for connecting solar panels in photovoltaic power plants. They were originally developed by a company named Multi-Contact AG. The company is now known as Staubli.

These connectors are used in most rooftop solar systems for housing societies, homes, commercial buildings, and industries worldwide because they’re safe and can withstand decades of outdoor exposure.

The word MC4 refers to the Multi-Contact brand name and the 4mm contact pin diameter. These connectors have a unique touch-safe design where all live electrical parts are completely sealed. This prevents accidental contact with live parts during installation or maintenance.

Here are the key advantages that have made MC4 solar panel connectors so popular:

• Touch-safe design: All the live electrical parts are sealed inside the MC4 connector. This means installers and maintenance crews can handle them without the risk of getting shocked.
• Tool-free connection: You don’t need special tools to put them together. Just push the connectors until they click, and you know the connection is secure.
• Superior weatherproofing: These connectors are sealed to keep out dust and water. Even in heavy rain or storms, the connection stays safe and reliable.
• High current capacity: They can safely carry 30 to 50 amps of electricity, depending on the model. This makes them suitable for modern solar panels, such as bifacial solar panels, which produce more power.
• Wide temperature range: They are designed to operate in extreme weather conditions, ranging from freezing winters at -40°C to intense summers at +85°C, without compromising performance.
• Positive locking mechanism: Once connected, MC4 solar panel connectors lock firmly in place. Vibrations, wind, or temperature changes won’t make them come loose accidentally.

#2. MC3 Solar Wire Connectors

MC3 solar wire connectors were the first-generation Multi-Contact solar connectors. They were the most popular type of solar panel electrical connector between the late 1990s and the mid-2000s. They were developed when solar panels typically produced lower voltages and currents.

As solar technology advanced to higher efficiency solar panels with increased electrical output, certain design limitations started making MC3 connectors a safety risk.

Let’s check out all the limitations that ultimately rendered MC3 unfit for modern solar systems:

• Safety concerns: The metal parts were partly exposed. It meant they could carry voltage and pose a risk of shock during handling.
• Limited current capacity: They could handle only up to 20 amps, which wasn’t enough for newer, high-power solar panels.
• Lower voltage rating: With a 600V DC limit, they weren’t suitable for larger or utility-scale solar systems that run at much higher voltages.
• Inferior weatherproofing: Their IP65 sealing was weaker. As a result, dust and moisture can sometimes enter and affect performance.
• Reliability issues: Their twist-lock design was tricky, and if it wasn’t tightened just right, the connection could end up loose and unreliable. Over time, vibrations and temperature changes started to loosen their bayonet-style connection. This led to unstable contacts.
• Maintenance difficulties: Disconnecting them required special tools. It made servicing slower and more complicated compared to newer connectors.

Here’s a tabulated snapshot of MC3 vs MC4 solar panel connectors to provide a brief overview of why MC4 eventually replaced MC3.

#3. T4 Connectors

T4 solar cable connector assemblies were developed by Tyco Electronics (now called TE Connectivity) to compete with MC4 connectors. They had also become fairly popular in Europe in the mid-2000s, when solar companies were seeking alternatives to the Swiss-made MC4.

Like MC4, T4 connectors also had a 4mm contact size and could handle similar levels of current and voltage. But their housing and locking system were different. So, what happened that T4 couldn’t achieve universal adoption despite looking so promising? Let’s find out!

Here’s why T4 failed to achieve universal adoption despite looking promising:

• Market timing: By the time T4 solar wire connectors were introduced, MC4 had already gained popularity worldwide. Installers and manufacturers had started treating MC4 as the standard.
• Limited manufacturer adoption: Only a handful of European solar brands used T4 solar wire connectors. Without widespread support from big panel makers, T4 couldn’t spread beyond niche markets.
• Increased complexity: Since T4 and MC4 solar panel electrical connectors had different locking and housing designs, they couldn’t connect directly with each other. This caused headaches in projects that used PV panels from multiple manufacturers.
• Higher costs: Since fewer companies manufactured T4 connectors, production volumes were smaller. It made them more expensive compared to MC4.
• Supply chain limitations: Outside of Europe, it was more challenging to find T4 connectors and replacement parts. Installers in other regions preferred MC4 because it was easier to source globally.
• Installer resistance: Electricians and solar installers didn’t want to learn a separate system or buy extra tools just for T4 connectors. Since they were already trained on MC4, many avoided T4 altogether.

Here’s a head-on comparison between T4 and MC4 solar panel connectors to quickly explain how superior features and longer market presence made MC4 stick its ground:

#4. Amphenol H4 connectors

Amphenol H4 connectors are high-end solar connectors designed for extremely tough conditions where regular MC4 connectors may not be sufficient. They’re used in specialized areas, such as marine projects, aerospace, or locations with extreme weather conditions.

Instead of a normal plastic shell, H4 connectors use a strong metal body with advanced sealing. They have extra layers of protection to keep out water and dust, and are built with corrosion-resistant materials that help them withstand even the harshest environments.

Despite being a bit more rugged, H4 remains a niche solution that hasn’t been able to replace MC4 solar panel electrical connectors. Let’s find out why!

• Premium pricing: H4 connectors can cost three to five times more than regular MC4 connectors. It makes them too expensive for normal residential and commercial solar projects.
• Proprietary design: You can’t mix them with other brands or connector types. Once you start with H4, the entire system must use H4 connectors only.
• Limited availability: They’re sold mostly through Amphenol’s own channels. You won’t find them as easily as MC4 connectors.
• Specialized installation: Assembling them isn’t as straightforward as with MC4. They need special tools and trained technicians. All of this makes installing them even more expensive.

Here’s a side-by-side comparison between the two types of solar panel electrical connectors:

#5. Basic Anderson Powerpole Solar Wire Connectors

Basic Anderson Powerpole connectors are DC connectors developed by Anderson Power Products for use in military and emergency communication equipment, including amateur radio, emergency gear, and portable power setups. They weren’t originally designed for solar panels. Over time, people started using them in battery banks and small portable solar systems.

What makes them different is their unisex design. The same connector can be used for either positive or negative just by flipping the contacts inside. You can also snap multiple connectors together to create custom plug shapes for different needs.

However, they aren’t used in rooftop or large solar power plants. That’s because Powerpole connectors support lower current compared to MC4 solar panel electrical connectors. Needless to say, MC4 is still the safer and more reliable choice.

Let’s check out all the reasons why Anderson Powerpole connectors couldn’t replace MC4 in rooftop solar installations.

• Made for a different purpose: Powerpoles were designed for situations where you need to plug and unplug a lot. Solar panels, on the other hand, require connectors that remain securely in place for decades.
• Limited weather protection: Without an IP rating, they cannot withstand harsh outdoor conditions, such as dust or heavy rainfall. It makes them less reliable for rooftop or ground-mounted solar systems.
• Bulky size: The housings are larger in size. Naturally, they’re not practical for connecting solar panels side by side where space is limited.
• More expensive: They usually cost more than connectors made specifically for solar systems.
• Trickier installation: Each connector needs to be crimped and then assembled into its housing. This takes more time and skill compared to the quick push-and-click style of MC4 solar panel electrical connectors.

Here’s a side-by-side comparison between the two types of solar panel electrical connectors:

How Many Types of MC4 Solar Panel Connectors Are There?

The two basic kinds of MC4 solar panel electrical connectors are male and female connectors. However, over time, many variations have been developed for various purposes. Let’s break them down one by one in simple terms:

• Male MC4 connectors: These have a metal pin inside and are usually used for the positive (+) wire. They are slightly slimmer in size and plug into the female connectors. Their design makes sure you don’t accidentally connect them the wrong way.
• Female MC4 connectors: These have a socket inside and are usually used for the negative (-) wire. They are slightly wider, so they fit the male connector snugly. The locking system keeps the connection waterproof and safe.
• Standard MC4 connectors: These are the ones you’ll see almost everywhere, on rooftops at homes and in commercial solar projects. They can handle 30 amps of current, work with common solar connector cables, and are fully weatherproof.
• MC4-EVO2 connectors: These upgraded MC4 connectors are designed to withstand even harsher conditions. They cost a bit more but are often used in big solar farms or in tough environments like deserts.
• MC4 Branch connectors (Y or T connectors): These specialized connectors enable you to join two or three solar panels in parallel without the need for a junction box.
• MC4 Fuse connectors: These resemble regular MC4 connectors but feature a built-in fuse. If too much current flows, the fuse blows and protects the system.
• MC4 Plus connectors: These are made for easy, tool-free installation. Instead of using a crimping tool, you simply push the wire in, and the spring mechanism locks it in place. Each connection takes less than a minute to complete.
• MC4 Adapter connectors: These are used when you need to connect MC4 to another type of connector, such as MC3 or Anderson PowerPole. They’re especially useful when mixing equipment from different manufacturers.

What Are Solar Panel Electrical Connectors Used For?

The primary applications of solar panel electrical connectors include panel-to-panel connections in series, parallel connections to increase current capacity, and connections to inverters and solar panel charge controllers.

Let’s check out all the uses in detail:

• Panel-to-panel series connections: These connect one solar panel to the next. The positive wire of one panel plugs into the negative of the next, forming a chain. It raises the system voltage. It’s the most common way solar panels are connected on rooftops and in commercial projects.
• Parallel connections: In this configuration, two or more solar panel chains are connected in parallel. This maintains the voltage but increases the total current. Installers use Y-connectors or combiner boxes to make these links in bigger PV systems.
• Inverter connections: The combined DC output from PV panels is connected to the inverter through MC4 connectors. Since this point carries the highest current and voltage, strong and secure MC4 connections are critical.
• Grounding and safety systems: Safety devices and grounding wires also rely on MC4-style connections to meet electrical code requirements and protect people from electrical shock.
• System Expansion and Maintenance: One of the biggest advantages of MC4 connectors is that they allow you to add more panels later or disconnect sections for repairs without having to rewire the entire system.

How to Choose the Right MC4 Solar Panel Connectors?

Choosing the right MC4 connectors isn’t hard when you select a professional solar panel installation company to install rooftop solar in your home. The key is to choose those MC4 connectors that can handle your system’s electricity, fit your wires properly, and survive the weather where they’ll be installed.

Here’s what to look for:

• Current rating: Always pick solar panel electrical connectors that can handle more current than your panels produce. Most homes are fine with 30A connectors. However, bigger homes may need 50A connectors.
• Wire size: Ensure the connector matches the size of your cable. Too big or too small, and you risk a poor connection that can overheat and fail.
• Weather protection: Go for at least IP67. For harsh places like deserts, IP68 is better.
• Stick with trusted brands: Always use connectors from original manufacturers. Even slight differences can cause leaks, bad contact, or void your warranty.

Is It Worth Installing an On-Grid Rooftop Solar System At Homes?

The electricity tariffs in India increase by 3-6% annually. Installing an on-grid solar system to generate your own free solar electricity can reduce your bills by 90% or make them completely zero, save you tens of lakhs of rupees that would otherwise be spent on paying hefty bills that will only become costlier over time, and reduce your carbon footprint.

But is it worth the investment?

Let’s first provide a side-by-side comparison between the cost of installing a solar system in a city like Nagpur and the money that system will save over its 25-year lifespan, before we break down the all-India rates for rooftop solar.

*Please note: The above-mentioned solar panel price is indicative as of 30th August 2025 for the SolarSquare Blue 6ft variant. The final cost of installing an on-grid rooftop solar panel system at home depends on your DISCOM charges, product variant opted for, panel type, inverter type, mounting structure height, type of after-sales service, savings guarantee, roof height, etc. Prices are subject to change. Additionally, while calculating savings, we have considered the annual tariff escalation at 3% and the annual degradation at 1%. The actual final savings from solar panel installation depend on the types of solar panels you’ve installed and their efficiency, intensity of sunlight your rooftop receives, orientation of the panels and tilt angle, the pollution level and weather conditions in your city, the temperature, shadow on the roof, impact of dirt/dust, and how well you maintain your panels after installation.

Excited about the savings? Use SolarSquare’s free solar rooftop calculator to estimate solar savings that an on-grid solar system can make for you in your city.

That said, let’s now give you an estimate of the solar system installation cost in India with and without a subsidy under the PM Surya Ghar Muft Bijli Yojana:

*Please note: The above-mentioned solar plate price is indicative as of 30th August 2025 for the SolarSquare Blue 6ft variant. The final cost of installing an on-grid rooftop solar panel system at home depends on your DISCOM charges, product variant opted for, panel type, inverter type, mounting structure height, type of after-sales service, savings guarantee, roof height, etc. Prices are subject to change.

Conclusion

They might be one of the smallest components of a solar energy system, but without solar panel electrical connectors, solar systems will be far from safe. Good-quality MC4 connectors ensure safe DC transmission while preventing water and dust from seeping in accidentally. When installed the right way, these connectors can keep electricity flowing safely for decades and also meet all electrical code requirements.

If you’re looking to go solar but don’t know where to begin, you can download SolarSquare’s free solar handbook or book a free consultation call with our experts to get all your queries resolved.

Calculate your savings

Forecast your savings with solar on your investment on the SolarSquare’s plant

Pin code *

Please enter a valid pincode.

Oh! We haven’t reached your location yet

We are not yet servicable at your location but we will soon!

City

Avg electricity bill

Min. 500 Max ₹10,000

Calculate now

FAQs

Q1. What does the number 4 in MC4 connectors stand for?

Ans. The 4 in an MC4 solar panel electrical connector stands for the 4 mm diameter of the metal pin inside the connector. MC, on the other hand, is the brand’s initial, Multi-Contact AG.

Q2. What types of connectors are used in solar panels?

Ans. Most modern solar panel systems use MC4 connectors. Older systems sometimes used MC3, T4, or other types of solar wire connectors. But they either had design faults or were too expensive for mass-scale installation. MC4 resolves all these issues and is therefore widely used globally.

Q3. What are Amphenol connectors?

Ans. Amphenol H4 connectors are heavy-duty solar connectors designed for tough conditions like marine, desert, or mobile systems. They’re slightly stronger than MC4 connectors, but also cost significantly more.

Q4. Why are solar cables and connectors important?

Ans. They safely carry power between solar panels, inverters, and batteries while keeping out water, dust, and sunlight damage. Without good ones, the system won’t run reliably.

Q5. What is the purpose and function of a solar connector cable?

Ans. Solar connectors are used to join solar panels and other parts of a solar system safely and securely. Their main purpose is to carry the DC electricity from the panels without losing power or creating safety risks. They keep out water, dust, and sunlight damage, allowing the system to run outdoors for decades.
