What is a Flat Plate Collector? Working Principle, Types, and Advantages Explained

Climate change is no longer knocking on the door, it’s barging in! As the Earth experiences global warming, with surface temperatures 2.65 degrees Fahrenheit higher in 2024 than in the late 19th century, scientists and governments are rushing towards alternative sources of energy to tackle the issue. And one of the most common yet effective solutions for heating water for domestic purposes without damaging the environment is a flat plate collector, which is known to attain a temperature range of 100 °C.

In simple terms, a flat plate collector (FPC) is a solar panel device that uses solar energy to generate thermal energy, utilizing water or air as operating fluid.

In this blog, you will learn the flat plate collector working principle, the different types of FPCs, and their advantages. Let’s get started.

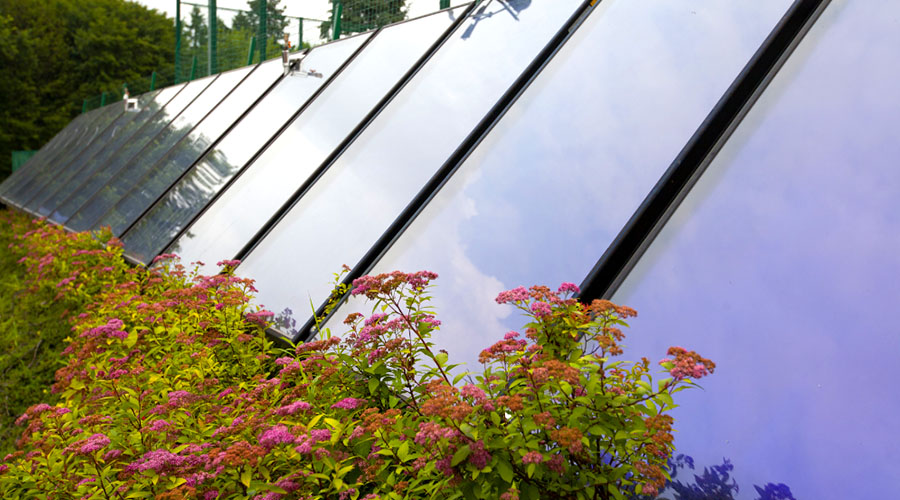

Flat Plate Collector Overview

It just sits there – quiet, unbothered, blackened by purpose. No blinking lights, no techy show-off. And yet, every single day, it pulls heat straight from the sky and turns it into warm water for your home.

That’s the flat plate collector!

No emissions. No fuel. No wires. Just aluminum, copper, glass, and sunlight. It’s already replacing the geyser and the bill for many people worldwide.

In scientific terms, a flat plate solar collector is a solar thermal device designed to harness sunlight by absorbing heat on a broad, flat surface. It typically consists of:

• A dark-coated absorber that takes in solar radiation
• A transparent top layer to let sunlight inside while minimizing heat escape
• Fluid-filled tubes that carry the captured warmth for practical use, like heating water or air.

The entire unit is insulated in a sturdy frame to maintain efficiency and durability over time.

Now that you know what is a flat plate collector, let’s take you through the components and the working principle of this device.

Flat Plate Collector Working Principle

Did you know? The ideal tilt angle for the solar panel in a flat plate collector usually aligns with the location’s latitude, with a margin of about 15 degrees either way. For systems focused on solar-powered cooling, it’s better to tilt the panel slightly less than the latitude, about 10 degrees lower, so it captures the strongest sunlight during the hotter months. The idea is to have the panel perpendicular to the sun so it collects maximum heat from sunlight.

If your heart skips a beat every time someone at home turns on the geyser, because you know your electricity bill will erupt like a volcano, then a flat plate collector might be your next best bet after an on-grid rooftop solar system.

The working of a flat plate collector involves the transfer of heat or thermal energy. The operating medium exchanges heat from the sun’s rays. Here’s the solar flat plate collector diagram that’ll help you understand how it works better:

Before we can walk you through the working principle of a flat plate collector, you need to understand its components.

Components of a Flat Plate Collector

Here are the typical components of a flat plate collector:

• Absorbing Plate: This component, located inside the collector, traps solar radiation. The absorbing plate converts the solar power into thermal power. It is a dark plate, generally made of copper foil.
• Tubes or Passages: The absorbing plate in a flat plate collector has a grid of conduits. These are tubes or passages for the circulation of the heat transfer fluid. It aids in conducting the working fluid from the inlet to the outlet.
• Insulation & Glazing Cover: Insulation minimizes heat loss from the absorbing plate. It is present on the sides & back of the plate collector. The insulation is typically made up of synthetic foam sheets (fiberglass, polyurethane, etc.)
• Casing or Container: The casing serves as a resting surface or closure for the components of the flat plate solar collector.  It is made up of aluminum and holds all elements in place.

Now, let’s check out the flat plate collector working principle.

How Does a Flat Plate Collector Work?

Here’s a step-by-step detailed breakdown of the flat plate collector working principle:

• Sunlight Hits the Collector Surface: The collector is a dark-colored, flat absorber plate designed to soak up sunlight. As sunlight strikes this surface, it begins to heat rapidly due to its high absorbance and minimal reflection.
• Heat Is Transferred to Internal Pipes: Beneath or attached to the heated plate are thin tubes or channels through which a working fluid, commonly water, air, or a water-glycol mixture, flows. As the plate heats up, the heat is transferred directly to the circulating fluid inside.
• Thermal Energy Is Carried to a Storage Unit: Once the fluid gains heat from the plate, it moves through insulated pipes toward a storage tank or a heat exchanger. This hot fluid is now ready to be used for domestic purposes like bathing.
• Cooler Fluid Returns for Reheating: After the thermal energy is delivered, the now cooler fluid returns to the collector. This ensures a continuous cycle of heat absorption and delivery as long as there’s sunlight.
• Glass Cover Traps Heat Inside: A transparent cover, usually made of one or two layers of glass or plastic, sits above the absorber plate. This glazing helps trap heat by reducing convection and radiation losses, maintaining a higher internal temperature.
• Insulation Minimizes Heat Escape: The sides and bottom of the flat plate collector are surrounded by insulating material. This prevents the accumulated heat from leaking, allowing the collector to operate more efficiently, even during windy conditions.
• System Balances Temperature and Flow: For optimal performance, the flow rate of the circulating fluid is controlled to maintain a balance. Too fast a flow limits heat pickup, while too slow a flow causes excessive heat loss. Therefore, the FPC device aims for a middle ground to ensure steady output at usable temperatures.

What Are the Types Of Flat Plate Collector Devices?

There are different types of flat plate collectors based on glaze (material), configuration, and circulating fluid. Let’s explore all the types.

Here’s an overview of the primary types of flat plate collector devices:

Types of Flat Plate Collectors	Key Feature	Best Use Case
Glazed flat plate collector	Glass-covered, insulated	Home heating, hot water
Unglazed flat plate collector	Uninsulated	Pool heating, mild climates
Liquid flat plate collector	Uses water/antifreeze	Domestic hot water, heating systems
Air flat plate collector	Uses air as heat transfer medium	Space heating, agricultural drying
Parallel absorbing plate FPC	Can be installed in horizontal and vertical orientations	Ideal for apartment complexes, hotels, or institutional buildings
Series absorbing plate FPC	Has a high heat jump	Useful in applications like pre-heating for solar geysers

What Are the Types of Flat Plate Collectors Based on Glaze?

There are two types of flat plate collectors based on glaze: Glazed panels and unglazed panels:

• Glazed Panels: Glazed or Glazing Panels are insulated panels that embrace a glaze covering. They block infrared radiation and provide insulation to the solar plate. Under the glazing, there is an absorbent in which the working fluid flows. Glazed FPCs are commonly used in household water heating installations.
• Unglazed Panels: These flat plate collector devices are not glazed. Unglazed panels are usually utilized for swimming pool heating installations. They are inexpensive but less popular. Their temperature range is less than 30° C.

What Are the Types of Flat Plate Collectors Based on Circulating Fluid?

This classification depends on the type of heat transfer fluid used:

• Liquid Flat Plate Collectors: They use water, antifreeze solutions, or other liquids. The absorber plate transfers heat to liquid flowing through pipes or tubes.
• Air Flat Plate Collectors: They use air flow over or through the absorber. These are simpler systems compared to water FPCs, as there’s no issue of freezing or leakage in them.

What Are the Types of Flat Plate Collectors Based on Configuration?

These are also of two types: parallel absorbing plate and series absorbing plate:

• Parallel Absorbing Plate FPC: In a parallel flat plate collector, heat can be dispersed through a larger volume of circulating fluid via the branches present within the collector. It can be installed in both horizontal and vertical orientations.
• Series Absorbing Plate FPC: Such FPCs include a sole continuous circuit. It has a high heat jump and a lesser volume of circulating fluid.

Flat Plate Collectors Without Cover

Most flat plate solar collector types come with a cover (glass sheet), but those without a cover are also available.

A flat plate collector without a cover includes an absorber element made up of plastic, rubber, or polypropylene. Such solar plate collector devices are very reasonable.

• Flexible Installation Options: They have flexible configurations, so they can be placed on any surface.
• Ideal for Direct Heating Applications: A flat plate collector without a cover resists corrosion and facilitates direct heating systems, for example, swimming pool heating.

Notably, collector plates without covers, which have synthetic absorbers, function efficiently. However, they may rapidly lose their efficiency when the atmospheric temperature is lower than the working temperature or strong winds are blowing.

Sizing of A Flat Plate Collector

Did you know? On average, a one-square-foot collector plate heats around ten liters (2 gallons) of water to over 70°C every day. Hence, a single panel of 20 to 30 sq ft can heat about 300 liters (60 gallons) of water. This is approximately equal to the capacity of a standard hot water storage tank.

The size of a flat plate collector depends on the temperature and consumption requirements.

The flat plate solar collector devices generally range in:

• 4 x 6.5 ft
• 4 x 8 ft
• 4 x 10 ft

The most commonly available size of plate collectors is 4 x 8 ft (32 sq ft). It can weigh beyond 200 pounds (or 100 kg).

Advantages of a Flat Plate Collector

Some advantages of a flat plate collector include:

• Captures Sunlight from All Directions: A flat plate collector can absorb both direct and scattered sunlight, making it effective even on cloudy days.
• Eco-Friendly Energy Source: It generates heat without releasing pollution, making it a clean way to harness solar energy.
• Uses Renewable Power: FPCs rely on the sun, which is a free and endless source of energy.
• Low Maintenance and Long Lifespan: Flat plate collector devices have relatively low maintenance costs and longer working life.
• Simple and Cost-Effective Design: A flat plate collector is easy to make with basic materials, which keeps the overall cost low.
• Easy to Install: FPCs are mounted in a fixed position that can be tilted to catch the most sunlight, making installation straightforward.
• Works Well Even in Mild Sunlight: These collectors can still produce useful amounts of energy even when temperatures are low.

Conclusion

A flat plate collector is a device that acts as a heat exchanger. It converts solar power into thermal energy. It can gather solar energy and use it to heat water in the house for bathing, washing, and other purposes. Also, it can be used to heat hot tubs and swimming pools.

The FPCs prove to be more feasible than other water heating systems due to their economical price, simple design, and easy installation. They greatly help to save on energy bills.

FAQs

Q1. What is a flat plate collector?

Ans. A flat plate collector is a type of solar thermal device used to absorb sunlight and convert it into heat. It consists of a flat, dark-colored absorber plate that captures solar radiation, with tubes or channels through which a fluid (usually water or air) flows to carry away the heat.

Q2. What is the main limitation of flat plate collectors?

Ans. The main limitation of a flat plate collector is the lack of optical concentration. Due to this, there is a larger area from which the heat energy is lost.

Q3. What type of metal is used for a flat plate collector frame?

Ans. Aluminum is the most commonly used metal for the frame of a flat plate collector. It is preferred due to its lightweight nature, corrosion resistance, and structural durability, which are essential for outdoor installations. In some cases, galvanized steel or stainless steel may also be used, particularly in industrial-grade systems where environmental resistance is necessary.

Q4. What is the price of a flat plate collector?

Ans. A single piece of a glazed flat-plate collector can cost approximately ~ Rs. 12,999*. *Please note: SolarSquare does not sell flat plate collectors. The price mentioned above is based on standard market estimates. The actual price of a flat plate collector can vary based on the type and size of collector you choose.

Q5. What are the uses of a flat plate collector?

Ans. Some common uses of a flat plate collector are: Space heating Heating the swimming pool or hot tubs Support for household solar water heating systems Preheating of fluids in industrial sectors
